Model: JS Series

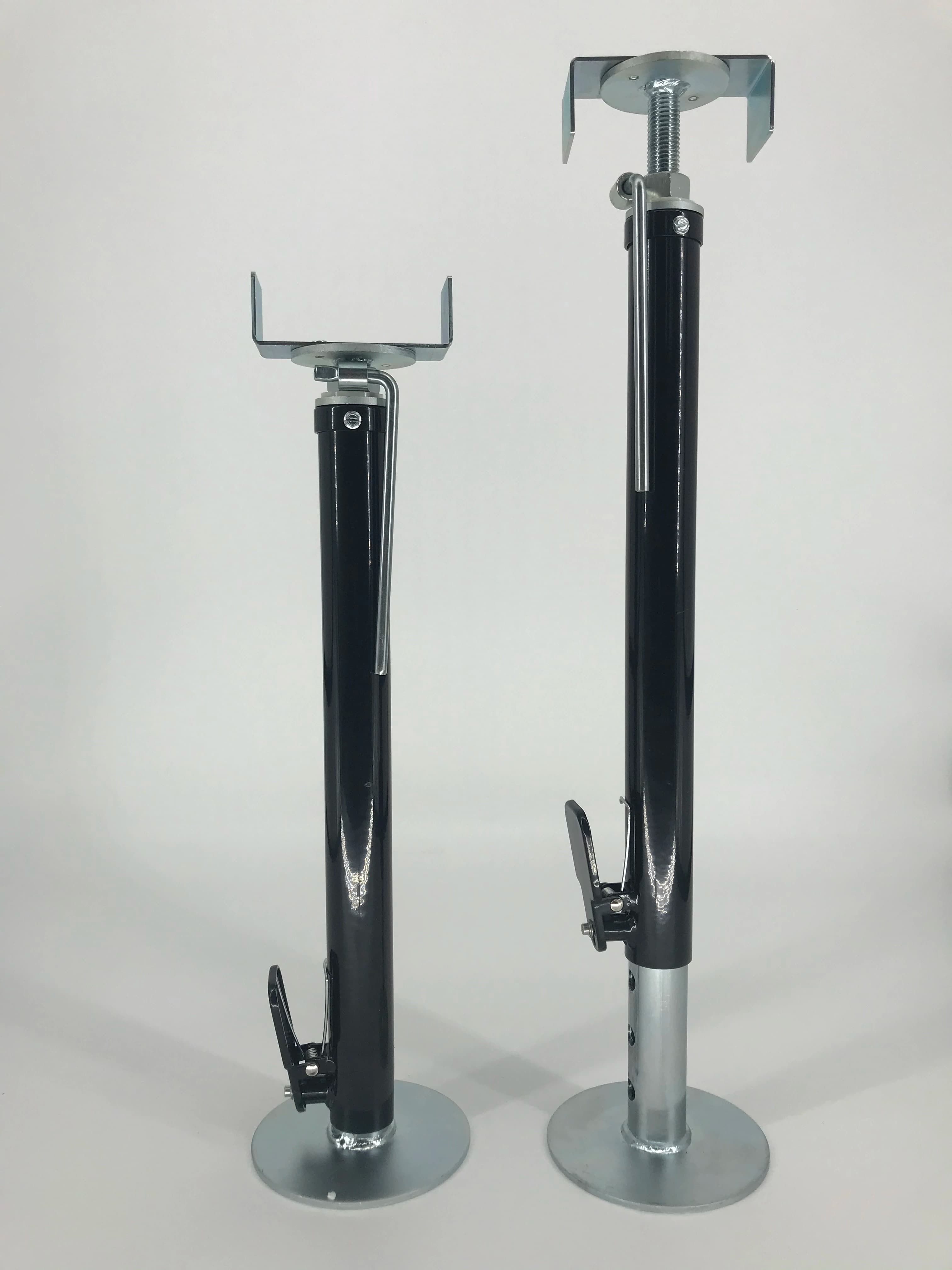

Ensuring long-term structural integrity and preventing structural deflection in expandable caravan sections requires robust specialized hardware. The Model: JS Series Side Slide-Out Support Set by HENGHONG delivers a professional-grade, mechanical stabilization solution engineered to support extended slide-out rooms on travel trailers, fifth-wheels, and luxury motorhomes. Fabricated from heavy-gauge structural carbon steel, each synchronized stabilizer set provides a certified 500 lbs (226 kg) vertical supporting threshold, directly relieving stress from the vehicle's internal slide-out rail mechanisms and perimeter rubber weather seals.
Manufactured within our 39,000 m² ISO9001-certified and Intertek-audited production facility, the JS Series utilizes an all-mechanical, low-maintenance drive screw paired with a resilient industrial black powder-coated finish. Unlike standard lightweight leveling jacks that lack localized stability, HENGHONG's specialized slide-out support matrix features an optimized strength-to-weight profile, weighing just 11.8 kg per set. This design allows global parts distributors and commercial fleet operators to integrate premium stabilization hardware into their catalogs without adding excessive deadweight to the trailer chassis.
For recreational vehicle manufacturers (OEMs) and commercial parts distributors, understanding the mechanical difference between standard chassis leveling and localized slide-out room stabilization is key to reducing long-term body warranty claims.
| Field Engineering Challenges | Extended Rooms Without Dedicated Support | HENGHONG JS Series Support Matrix | Structural & Fleet Outcome |
|---|---|---|---|
| Rail Alignment & Friction | Internal weight causes the room to tilt slightly down, causing slide rails to bind and overtaxing 12V actuator motors. | Provides stable, adjustable vertical support under the extension outer frame, keeping the rails perfectly parallel. | Reduces slide-out motor burnout rates, lowering long-term dealer warranty service costs. |
| Weather Seal Degradation | Structural sagging compresses top rubber seals while opening bottom gaps, leading to sudden rain leaks. | Maintains level alignment across the slide-out box, ensuring uniform pressure along the perimeter weather stripping. | Prevents long-term water intrusion and sidewall rot, safeguarding the RV cabin interior. |
| Chassis Rocking & Flexing | Interior movement inside an unsupported slide-out room creates a leverage effect, shaking the entire vehicle chassis. | Wide base plate and heavy-duty steel tube assembly absorb local motion, grounding dynamic forces directly. | Eliminates low-frequency cabin sway, creating a rock-solid, home-like floor profile for occupants. |
| Hardware Weight Penalties | Over-engineered heavy iron blocks add 25+ kg of unnecessary deadweight, cutting into user towing capacities. | High-tensile structural steel achieves a 500 lbs capacity with an optimized 11.8 kg design profile. | Preserves valuable cargo capacity (CCC) for trailer OEMs and end-consumers. |
Direct sourcing from an established 22-year manufacturing infrastructure provides global purchasing groups and aftermarket retailers with complete material heat-number traceability, regulatory compliance, and steady profit margins.
| Sourcing & Engineering Context | Technical Specification Data | Fleet Integration & Supply Chain Value |
|---|---|---|
| Model Designation | JS Series Architecture | Standardized baseline SKU for commercial asset tracking and global B2B procurement. |
| Static Load Threshold | 500 lbs (226 kg) per Stabilizer Set | Safely balances extended rooms containing heavy furniture, kitchens, or slide-out lounge sections. |
| Primary Material | High-Tensile Structural Carbon Steel | Exceptional yield strength prevents tube bending or structural buckling under sudden load shifts. |
| Operational Mechanism | Manual Smooth-Thread Precision Lead Screw | Allows fine-tuned height indexing to match uneven terrain without requiring complex tools. |
| Net Assembly Weight | 11.8 kg per Pair Portfolio | Compact, optimized weight distribution lowers bulk shipping costs and simplifies handling. |
| Surface Protective Armor | Corrosive-Resistant Black Powder Coating | Passed rigorous atmospheric moisture and road chemical wash lifecycle testing. |
| Base Plate Geometry | Wide-Gauge Structural Foot Pad | Distributes vertical load across unpaved surfaces, stopping sinking in soft dirt, sand, or gravel. |
| Adjustment Layout | Quick-Pin Coarse Lift + Fine Thread Trim | Combines efficient initial setup speed with precise leveling control under the room flange. |
| Factory Quality Protocol | 1-Year Comprehensive Warranty | Fully supported by complete material traceability and 8D corrective engineering action files. |
