Model: HH-3500 Standard
Voltage
DC12V
Stroke
457 mm (18 in)
Single Leg
1587 kg (3500 lbs)

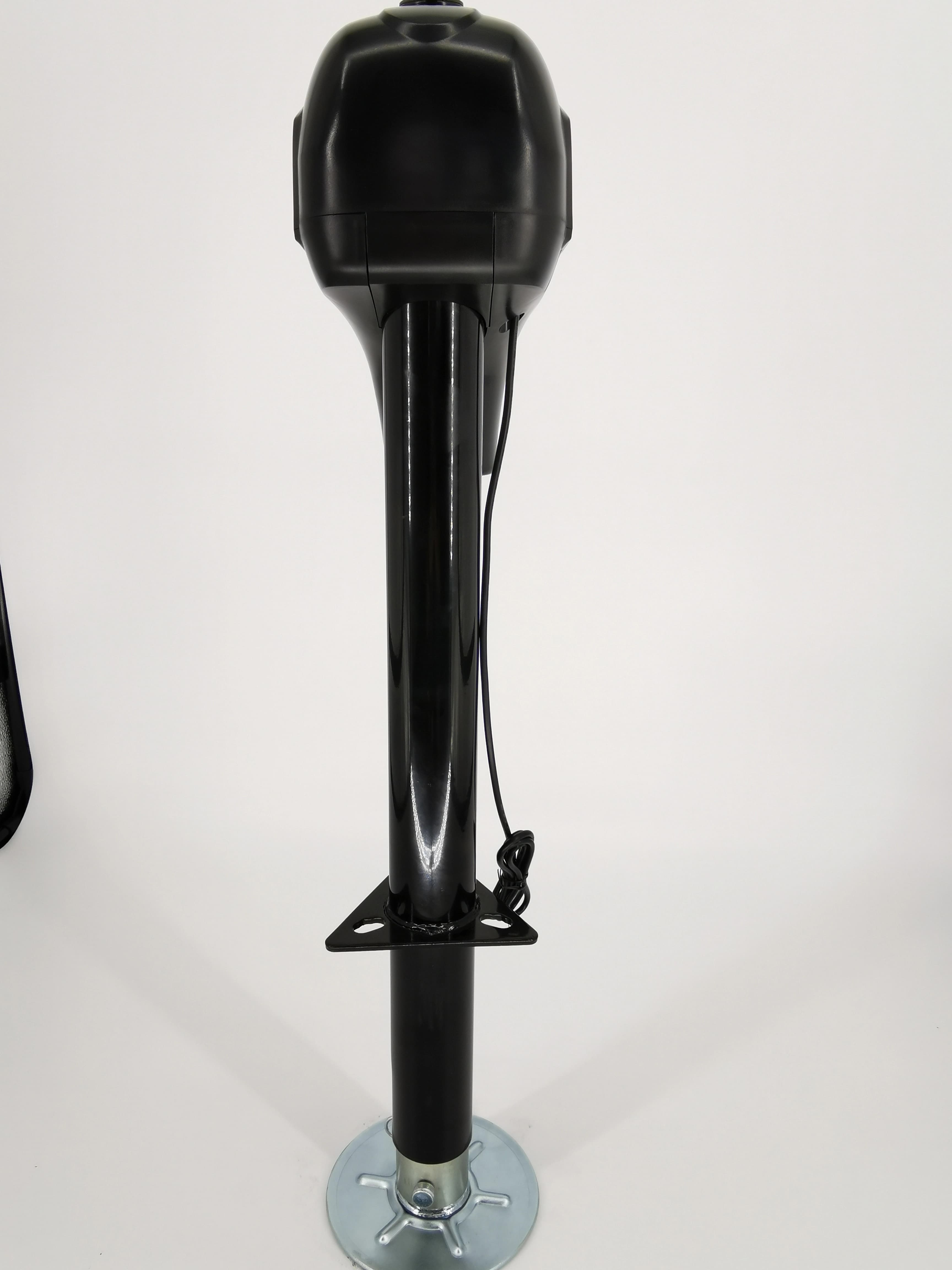

The Model: HH-3500 Standard is a high-reliability, fleet-grade 12V DC electric tongue jack manufactured by HENGHONG. Engineered as a high-volume, cost-effective baseline for commercial trailer builders, RV fleet operators, and logistics parts distributors, this jack offers an uncompromising 3500 lbs (1,587 kg) dynamic lifting capacity.
Designed to fit all standard three-bolt A-frame trailer couplers, the HH-3500 Standard focuses on mechanical simplification, delivering low-maintenance and long-lasting durability. Equipped with an integrated manual override drive core, it ensures absolute fleet operational uptime even during complete onboard battery failure or zero-voltage conditions.
In commercial rental fleets and agricultural supply chains, complex electronics can often become points of failure when exposed to harsh outdoor elements. The HENGHONG HH-3500 Standard eliminates unnecessary complications by prioritizing robust electromechanical execution. The internal mechanism features a high-efficiency steel worm-gear reduction assembly that minimizes mechanical noise while drawing less than 25 Amps under peak structural loading.
The heavy-wall steel structural housing is finished with an anti-corrosion, marine-grade industrial Powder Coating (available in clean White or textured Black) to resist severe rust, salt-spray flaking, and prolonged UV breakdown. Shipped in high-density, stackable logistics cartons (Yellow Box), this product is optimized for rapid distributor warehousing, direct-to-dealership racking, and streamlined line-assembly operations.
| Engineering Parameter | Certified Factory Specification Data | B2B Procurement & Logistics Value |
|---|---|---|
| Brand & Manufacturer | HENGHONG (Zhejiang, China) | Direct OEM factory source; full material traceability compliance |
| Model Designation | HH-3500 Standard | High-volume baseline SKU for international parts procurement |
| Max Payload Class | 3500 lbs (1,587 kg) Static Holding | Safely supports 90% of standard A-frame light-to-medium utility trailers |
| Vertical Stroke Travel | 18 in (457 mm) | Accommodates extreme truck-bed offsets and high-clearance ball hitches |
| Operational Input Voltage | DC 12V | Plug-and-play integration with standard 7-way tow plugs or house cells |
| Peak Operational Current | <25 A | Low-amp engineering preserves battery health and avoids circuit blowing |
| Redundancy Drive | Mechanical Top-Port Manual Override | Guarantees emergency trailer detachment during full power loss |
| Primary Material | Heavy-Gauge Forged Structural Steel | Superior resistance against longitudinal shear forces and lateral winds |
| Regulatory Clearances | FCC, IC, CE Certified | Verified and approved for immediate import into US, Canadian, and EU zones |
| Packaging Protocol | High-Density Reinforced Yellow Box | Optimized for container cube utilization and palletized sea freight |
