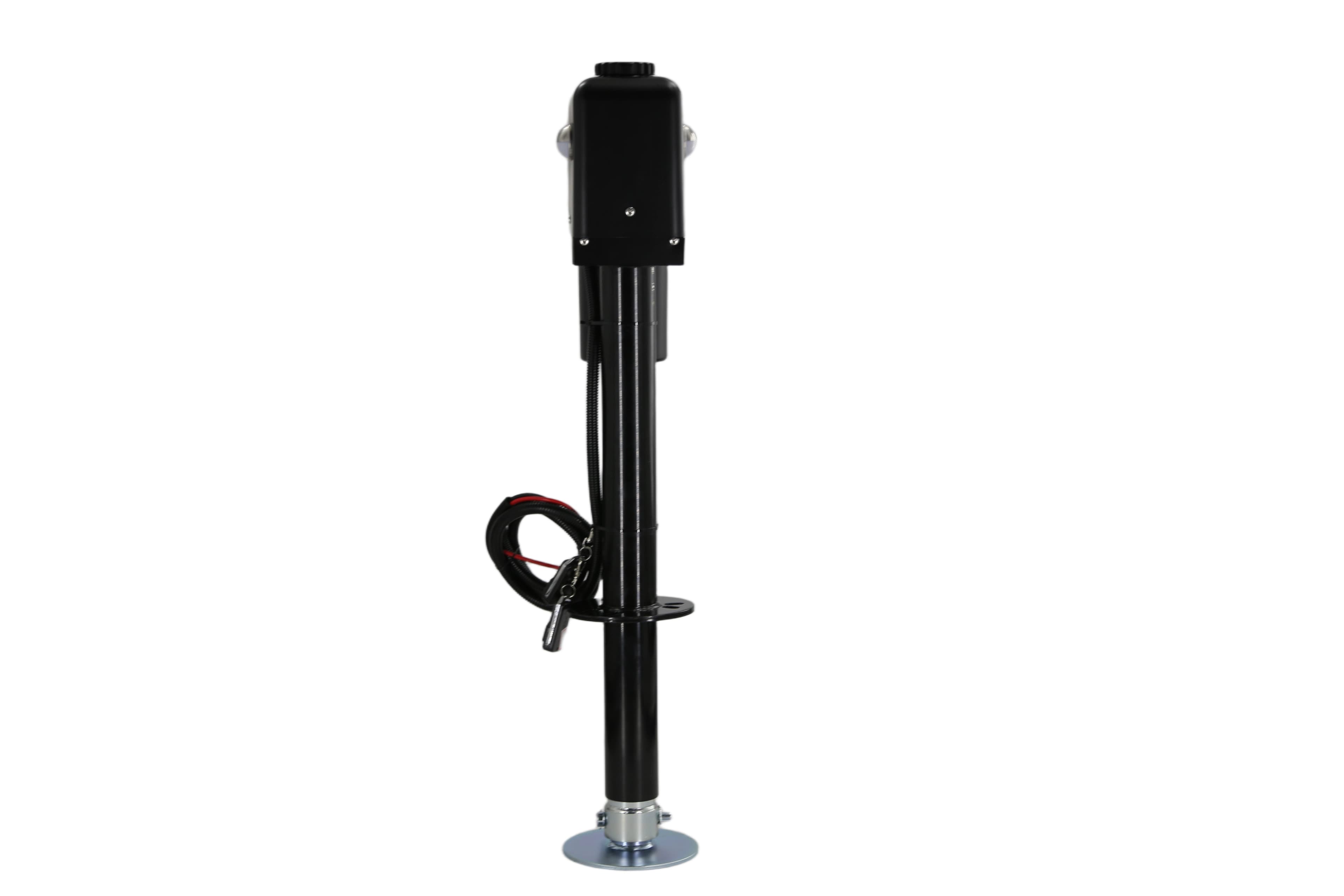

3500lbs/7500lbs High-Redundancy Electric Trailer Jack with LED Matrix (Model: HH-3500 LED / HH-7500R Series)

Heavy-Duty 12V DC Premium A-Frame Tongue Jack | Heavy Cargo & Horse Trailer Class

The Model: HH-3500 LED (engineered under corporate OE platform HH-7500R) is a commercial-grade, high-velocity electromechanical tongue jack designed for standard A-frame couplings. Purpose-built for travel trailers, horse luxury trailers, and heavy utility haulers, this jack features an over-engineered drivetrain block. While maintaining a swift, power-efficient operational rating of 3500 lbs (1,587 kg) under dynamic 12V DC draw, its structural alloy steel column and hardened gearing core inherit the heavy-duty 7500 lbs (3,401 kg) structural footprint of the HH-7500R series, offering an elite 2.14x safety engineering threshold common in military and high-stakes commercial logistics.

• Dynamic Lifting Rating: 3500 lbs (1,587 kg) High-Velocity Adjustment
• Static Structural Payload: Up to 7500 lbs (3,401 kg) Peak Structural Security
• Spatial Envelope Dimensions: Ultra-Compact 22 x 8 x 8 Inches Powerhousing
• Nighttime Operations: Integrated High-Visibility Directional LED Work Light Array

---

🛠️ Product Overview & Over-Engineered Safety Margin

Standard aftermarket tongue jacks operate at the absolute brink of their physical load thresholds, resulting in high internal gear-stripping rates when parked on unpaved sloped terrains. The HENGHONG HH-3500 LED / HH-7500R cross-platform jack resolves this industry vulnerability. Encased in a weathered 22 x 8 x 8 inch sleek high-impact enclosure, it houses a hardened high-torque steel vertical screw mechanism designed to endure violent crosswinds and emergency field tire swaps without horizontal deflection.

The power head is protected by a marine-grade black powder coat finish that resists salt, road grime, and acid rain erosion. The integrated downward-facing LED illumination cluster is directly integrated with the main 12V terminal loop, completely eliminating the hazard of uncoupling heavy livestock or mechanical equipment in midnight darkness or severe storm environments.

---

📊 Meticulous Technical Specifications

---

⚡ Key Engineering Features & Merchant Advantages

• 7500lbs Structural Redundancy Matrix: By leveraging the structural metallurgy of the heavy-duty HH-7500R platform, this jack offers unparalleled structural stability during off-center loading. This makes it an essential asset for emergency roadside tire changes and long-term storage leveling.
• Low-Draw, High-Torque 12V Motor: The specialized internal reduction gear assembly enables rapid vertical lifting with minimal current draw, shielding the trailer's main battery bank from premature draining or voltage spikes.
• Zero-Backlash Mechanical Hold: The hardened internal vertical screw creates an absolute mechanical lock when power is cut. It maintains positive positioning under dynamic trailer sway without relying on hydraulic fluids or electronic brakes.
• Streamlined Stock Optimization: This dual-purpose design allows wholesale distributors to stock a single premium SKU that seamlessly satisfies both consumer-grade 3500lbs travel trailer needs and industrial-grade heavy cargo application thresholds.

---

🚛 Industrial Applications & Platform Compatibility

• Heavy-Duty Horse & Livestock Trailers: Ensures steady, rock-solid support when shifting animal weights create highly dynamic lateral forces inside the trailer bed.
• Commercial Utility & Heavy Flatbeds: Faster turnaround times for industrial transport operators who cycle multiple heavy hitchings daily.
• Travel Trailers, Campers & Fifth Wheels: An immediate, premium upgrade to traditional manual jacks for consumer-focused retail networks.
• Emergency Fleet Support Vehicles: Built to endure rapid deployments on harsh, uneven backcountry roads during midnight recovery operations.
